EGR Load Shield — Ford Ranger RA 2022-Current
- Aluminium checkerplate top panel — tough, textured, ready to work
- Extruded alloy side rails with cast end-caps for a solid, rattle-free fit

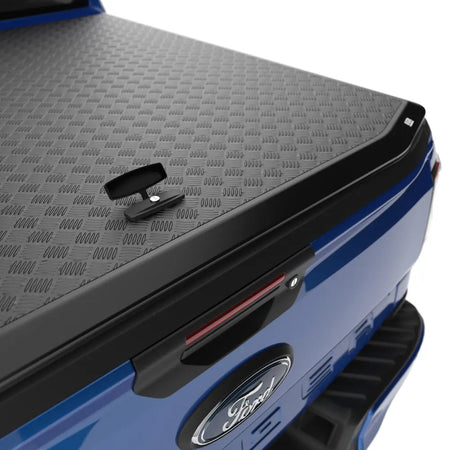

- Push-button T-Handle centre key-lock — rear corner side latching, 2 keys included
- UV stable matte black powdercoat finish
- EGR Cross Bar compatible — mount your gear on top
- Yakima Rack Kit compatible — 100kg load capacity with Yakima integration
- Cabin guards / Load Rests must be removed prior to fitment
- NOT compatible with Sports Bars

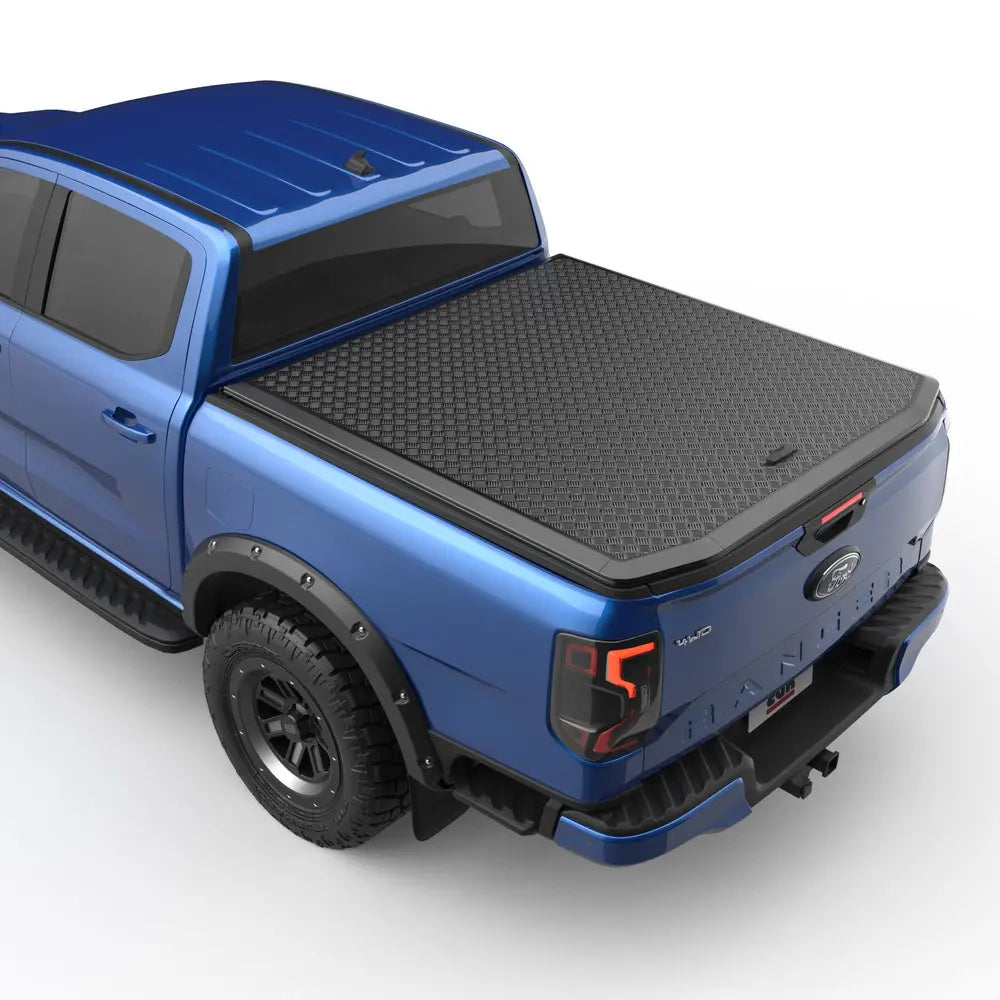

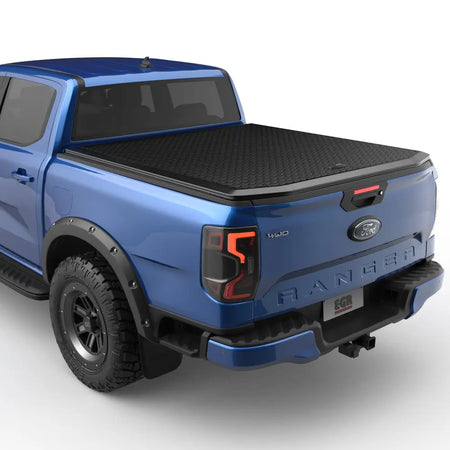

The EGR Load Shield for the Ford Ranger RA (2022-Current) is a hard aluminium tub cover purpose-built for the Next Gen Ranger. Designed to lock down your load area with a professional, factory-matched finish, it's the go-to solution for Ranger owners who want real tub security without sacrificing practicality.
Built around a strong aluminium checkerplate top panel mounted in extruded alloy side rails and cast end-caps, the Load Shield is engineered to handle daily work use and weekend adventure alike. It seals the tub from dust, weather and prying eyes — secured by a push-button T-Handle centre key-lock that operates rear corner side latching. Two keys are included. Unlike a soft tonneau, there's no rolling up, no straps, and nothing to rattle loose at highway speed.
One key detail: the Load Shield cannot be opened when the tailgate is closed. It operates independently of the tailgate — open the tailgate first, then lift the shield. This is by design and keeps the load area completely sealed when the tailgate is up.
Need to carry gear on top? The EGR Load Shield is built for it. You can attach EGR Cross Bars directly to the optional Side Rails, or integrate the Yakima Rack Kit onto the surface for a 100kg load capacity. Whether you're mounting a rooftop tent, a kayak, or a bike rack, the Load Shield gives you a solid, flat platform to build from. The UV stable matte black powdercoat finish ties it all together — resistant to fading and matching the tough look of a working Ranger.
Fitment Notes: Cabin guards and Load Rests must be removed before fitting the EGR Load Shield. This product is NOT compatible with Sports Bars. The RA body code refers to the Next Gen Ford Ranger (2022 onwards). If you're unsure whether the Load Shield suits your specific build, contact us before ordering.
Documents
Fitting Instructions — EGR Load Shield ATC0068 (Ford Ranger RA MY22)
Fitment Guide
| Vehicle | Year | Coverage | Notes |
|---|---|---|---|
| Ford Ranger Next Gen (RA) | 2022+ | Full tub/tray coverage | Optional side rails for cross bars; Yakima rack kit compatible |
Frequently Asked Questions
Does this LoadShield fit the Ford Ranger Next Gen (RA)?
Yes — the EGR Load Shield is purpose-built for the Ford Ranger RA 2022 onwards (Next Gen). Dual cab tub fitment.
How does it lock?
The Load Shield uses a T-handle locking mechanism that operates rear corner side latches and comes with two keys. The lid cannot be opened while the tailgate is closed.
Can I fit a rack system to it?
Yes. Optional side rails allow you to attach EGR Cross Bars, and a Yakima Rack Kit can be integrated directly onto the surface for up to 100kg load capacity.
What material is it made from?
The Load Shield features an aluminium checkerplate top panel in extruded alloy side rails and cast end-caps, finished in UV-stable matte black powder coat.
How long does installation take?
Most installs take 1–2 hours with basic hand tools. No drilling into the tub is required. Professional fitment is recommended for best results.
Quick Fitment Summary
fitment, security & rack info
Fitment
- Ford Ranger RA 2022-Current (Next Gen)
- SKU: ATC0068
- Cabin guards / Load Rests must be removed
- NOT compatible with Sports Bars
Security
- Aluminium checkerplate top panel
- Push-button T-Handle centre key-lock
- Rear corner side latching
- 2 keys included
Load & Rack
- EGR Cross Bar compatible (via Side Rails)
- Yakima Rack Kit compatible
- 100kg load capacity with Yakima Rack Kit
Load Shield Explained What it is, how it works & rack options
-
What is a Load Shield?
The EGR Load Shield is a hard aluminium tub cover for the Ford Ranger RA (Next Gen, 2022-Current). It sits over the entire load area of the ute tray, providing a secure, weatherproof seal that a soft tonneau simply can't match.
Unlike a roll-up soft cover, the Load Shield uses a rigid aluminium checkerplate top panel mounted in extruded alloy side rails with cast end-caps. There's nothing to flap, rattle, or peel back at speed. A push-button T-Handle with rear corner side latching keeps it firmly locked — with two keys included.
One thing to know: the Load Shield cannot be opened when the tailgate is closed. Open the tailgate first. This is intentional — it's what ensures a tight, dust-free seal around the entire tub when the tailgate is up.
Cabin guards and Load Rests must be removed for fitment. Not compatible with Sports Bars.
-
Rack & Cross Bar Compatibility
The EGR Load Shield isn't just a lid — it's a platform. You can build a fully functional roof rack setup directly on top of it.
- Attach EGR Cross Bars via optional Side Rails for a clean, integrated bar setup
- Or integrate the Yakima Rack Kit directly onto the Load Shield surface for a 100kg load capacity
That 100kg capacity opens up a serious range of fitment options — rooftop tents, bike carriers, kayak mounts, awnings, and more. The UV stable matte black powdercoat finish means the surface holds up to Australian conditions without fading or flaking.
Not sure which rack option suits your setup? Contact us before ordering.
Frequently Asked Questions
Common questions about the EGR Load Shield for the Ford Ranger RA 2022-Current
What is the EGR Load Shield for the Ford Ranger RA?
The EGR Load Shield (ATC0068) is a hard aluminium tub cover purpose-built for the Ford Ranger RA (Next Gen, 2022-Current). It covers the entire load area of the ute tray, providing a secure, weatherproof seal and a clean matte black finish.
It's constructed from an aluminium checkerplate top panel mounted in extruded alloy side rails with cast end-caps, and locked via a push-button T-Handle with rear corner side latching. Two keys are included.
Does the EGR Load Shield fit the Next Gen Ford Ranger (2022+)?
Yes — the EGR Load Shield ATC0068 is purpose-built for the Ford Ranger RA body code, which covers all Next Gen Rangers from 2022 to current.
Before ordering, confirm that you do not have a Sports Bar fitted, and that any Cabin Guard or Load Rest has been removed — these are not compatible with the Load Shield.
Can I fit a roof rack or cross bars on the EGR Load Shield?
Yes. The EGR Load Shield is compatible with EGR Cross Bars (via optional Side Rails) and with the Yakima Rack Kit, which integrates directly onto the Load Shield surface.
With the Yakima Rack Kit fitted, the Load Shield supports a 100kg load capacity — enough for a rooftop tent, bike rack, kayak mount, or awning setup. Contact us if you need help selecting the right rack option for your build.
What is the load capacity of the EGR Load Shield?
The EGR Load Shield supports a 100kg load capacity when fitted with the Yakima Rack Kit. This is suitable for most rooftop tents, bike carriers, kayaks, and other gear mounting systems.
Without a rack system, the Load Shield is designed for tub security and weather protection — not for stacking heavy gear directly on the lid surface.
Is the EGR Load Shield compatible with Sports Bars?
No — the EGR Load Shield is NOT compatible with Sports Bars. If your Ranger RA has a Sports Bar fitted, it will need to be removed before the Load Shield can be installed.
If you're unsure about compatibility with your current accessories, contact us before ordering.
Do I need to remove my cabin guard to fit the Load Shield?
Yes. Cabin guards and Load Rests must be removed before fitting the EGR Load Shield. The Load Shield covers the full tub area and the fitment profile conflicts with these accessories.
This is a one-time removal — once the Load Shield is installed, you won't need the cabin guard in place.
Is this the same as a hard lid or hard tonneau cover?
Essentially, yes. The EGR Load Shield functions as a hard lid / hard tonneau cover for the Ranger RA tub. It covers the full load area, locks with a keyed T-Handle, and provides a solid, weatherproof seal — far more robust than a soft roll-up or fold-up cover.
The key operational detail: the Load Shield cannot be opened when the tailgate is closed. Open the tailgate first, then lift the shield. This is by design and ensures a tight, dust-free seal when the tailgate is up.
